This package intends to gather information, meta-data and relevant scripts in proteogenomic analysis.

1 Collections

As used in several years of proteomic analysis and for future extensions, the collections are in two locations:

  • data/. R datasets.
  • inst/. EndNote/, Olink/, scripts/, pQTLdata.sh, docs.sh which spread into the package’s root directory after installation.

While library(help=pQTLdata) displays the general information, ? pQTLdata can give a list of data objects in the package.

2 Protein panels

2.1 Olink/Inflammation

The Olink qPCR inflammation panel (inf1)1 used in the SCALLOP consortium seeds the collection.

Table 2.1: Olink/inflammation panel
gene prot uniprot target target.short chr start end ensembl_gene_id alt_name ensGene chromosome start38 end38
ADA ADA P00813 Adenosine Deaminase (ADA) ADA 20 43248163 43280874 ENSG00000196839 NA NA NA NA NA
ARTN ARTN Q5T4W7 Artemin (ARTN) ARTN 1 44398992 44402913 ENSG00000117407 NA NA NA NA NA
AXIN1 AXIN1 O15169 Axin-1 (AXIN1) AXIN1 16 337440 402673 ENSG00000103126 NA NA NA NA NA
BDNF BDNF P23560 Brain-derived neutrophic factor (BDNF) BDNF 11 27676440 27743605 ENSG00000176697 NA NA NA NA NA
CASP8 CASP.8 Q14790 Caspase 8 (CASP-8) CASP-8 2 202098166 202152434 ENSG00000064012 NA NA NA NA NA
CCL11 CCL11 P51671 Eotaxin-1 (CCL11) CCL11 17 32612687 32615353 ENSG00000172156 CCL11 NA NA NA NA
CCL13 MCP.4 Q99616 Monocyte chemotactic protein 4 (MCP-4) MCP-4 17 32683471 32685629 ENSG00000181374 CCL13 NA NA NA NA
CCL19 CCL19 Q99731 C-C motif chemokine 19 (CCL19) CCL19 9 34689564 34691274 ENSG00000172724 NA NA NA NA NA
CCL2 MCP.1 P13500 Monocyte chemotactic protein 1 (MCP-1) MCP-1 17 32582304 32584222 ENSG00000108691 CCL2 NA NA NA NA
CCL20 CCL20 P78556 C-C motif chemokine 20 (CCL20) CCL20 2 228678558 228682272 ENSG00000115009 NA NA NA NA NA
CCL23 CCL23 P55773 C-C motif chemokine 23 (CCL23) CCL23 17 34340096 34345005 ENSG00000167236 NA ENSG00000274736 17 36013056 36017972
CCL25 CCL25 O15444 C-C motif chemokine 25 (CCL25) CCL25 19 8117651 8127534 ENSG00000131142 NA ENSG00000131142 19 8052318 8062660
CCL28 CCL28 Q9NRJ3 C-C motif chemokine 28 (CCL28) CCL28 5 43376747 43412493 ENSG00000151882 NA NA NA NA NA
CCL3 MIP.1.alpha P10147 Macrophage inflammatory protein 1-alpha (MIP-1 alpha) MIP-1 alpha 17 34415602 34417515 ENSG00000006075 NA ENSG00000277632 17 36088256 36090169
CCL4 CCL4 P13236 C-C motif chemokine 4 (CCL4) CCL4 17 34430983 34433014 ENSG00000129277 NA ENSG00000275302 17 36103827 36105621
CCL7 MCP.3 P80098 Monocyte chemotactic protein 3 (MCP-3) MCP-3 17 32597240 32599261 ENSG00000108688 CCL7 NA NA NA NA
CCL8 MCP.2 P80075 Monocyte chemotactic protein 2 (MCP-2) MCP-2 17 32646055 32648421 ENSG00000108700 CCL8 NA NA NA NA
CD244 CD244 Q9BZW8 Natural killer cell receptor 2B4 (CD244) CD244 1 160799950 160832692 ENSG00000122223 NA NA NA NA NA
CD274 PD.L1 Q9NZQ7 Programmed cell death 1 ligand 1 (PD-L1) PD-L1 9 5450503 5470566 ENSG00000120217 NA NA NA NA NA
CD40 CD40 P25942 CD40L receptor (CD40) CD40 20 44746911 44758502 ENSG00000101017 NA NA NA NA NA
CD5 CD5 P06127 T-cell surface glycoprotein CD5 (CD5) CD5 11 60869867 60895324 ENSG00000110448 NA NA NA NA NA
CD6 CD6 P30203 T-cell surface glycoprotein CD6 isoform (CD6) CD6 11 60739115 60787849 ENSG00000138675 NA ENSG00000013725 11 60971680 61020377
CDCP1 CDCP1 Q9H5V8 CUB domain-containing protein 1 (CDCP1) CDCP1 3 45123770 45187914 ENSG00000163814 NA NA NA NA NA
CSF1 CSF.1 P09603 Macrophage colony-stimulating factor 1 (CSF-1) CSF-1 1 110452864 110473614 ENSG00000184371 NA NA NA NA NA
CST5 CST5 P28325 Cystatin D (CST5) CST5 20 23856572 23860387 ENSG00000170367 NA NA NA NA NA
CX3CL1 CX3CL1 P78423 Fractalkine (CX3CL1) CX3CL1 16 57406370 57418960 ENSG00000006210 NA NA NA NA NA
CXCL1 CXCL1 P09341 C-X-C motif chemokine 1 (CXCL1) CXCL1 4 74735110 74736959 ENSG00000163739 NA NA NA NA NA
CXCL10 CXCL10 P02778 C-X-C motif chemokine 10 (CXCL10) CXCL10 4 76942273 76944650 ENSG00000169245 NA NA NA NA NA
CXCL11 CXCL11 O14625 C-X-C motif chemokine 11 (CXCL11) CXCL11 4 76954835 76962568 ENSG00000169248 NA NA NA NA NA
CXCL5 CXCL5 P42830 C-X-C motif chemokine 5 (CXCL5) CXCL5 4 74861359 74864496 ENSG00000163735 NA NA NA NA NA
CXCL6 CXCL6 P80162 C-X-C motif chemokine 6 (CXCL6) CXCL6 4 74702214 74714781 ENSG00000124875 CXCL6 NA NA NA NA
CXCL9 CXCL9 Q07325 C-X-C motif chemokine 9 (CXCL9) CXCL9 4 76922428 76928641 ENSG00000138755 NA NA NA NA NA
DNER DNER Q8NFT8 Delta and Notch-like epidermal growth factor related receptor (DNER) DNER 2 230222345 230579274 ENSG00000187957 NA NA NA NA NA
EIF4EBP1 4E.BP1 Q13541 Eukaryotic translation initiation factor 4E-binding protein 1 (4EBP1) 4EBP1 8 37887859 37917883 ENSG00000187840 NA NA NA NA NA
FGF19 FGF.19 O95750 Fibroblast growth factor 19 (FGF-19) FGF-19 11 69513000 69519410 ENSG00000162344 NA NA NA NA NA
FGF21 FGF.21 Q9NSA1 Fibroblast growth factor 21 (FGF-21) FGF-21 19 49258816 49261587 ENSG00000105550 NA NA NA NA NA
FGF23 FGF.23 Q9GZV9 Fibroblast growth factor 23 (FGF-23) FGF-23 12 4477393 4488894 ENSG00000118972 NA NA NA NA NA
FGF5 FGF.5 P12034 Fibroblast growth factor 5 (FGF-5) FGF-5 4 81187753 81257834 ENSG00000013725 NA ENSG00000138675 4 80266639 80336680
FLT3LG Flt3L P49771 Fms-related tyrosine kinase 3 ligand (FIt3L) FIt3L 19 49977464 49989488 ENSG00000090554 NA NA NA NA NA
GDNF GDNF P39905 Glial cell line-derived neutrophic factor (hGDNF) hGDNF 5 37812779 37839788 ENSG00000168621 NA NA NA NA NA
HGF HGF P14210 Hepatocyte growth factor (HGF) HGF 7 81328322 81399754 ENSG00000019991 NA NA NA NA NA
IFNG IFN.gamma P01579 Interferon gamma (IFN-gamma) IFN-gamma 12 68548548 68553527 ENSG00000111537 NA NA NA NA NA
IL10 IL.10 P22301 Interleukin-10 (IL-10) IL-10 1 206940947 206945839 ENSG00000136634 NA NA NA NA NA
IL10RA IL.10RA Q13651 Interleukin-10 receptor subunit alpha (IL-10RA) IL-10RA 11 117857063 117872196 ENSG00000110324 NA NA NA NA NA
IL10RB IL.10RB Q08334 Interleukin-10 receptor subunit beta (IL10RB) IL10RB 21 34638663 34669539 ENSG00000243646 NA NA NA NA NA
IL12B IL.12B P29460 Interleukin-12 subunit beta (IL-12B) IL-12B 5 158741791 158757895 ENSG00000113302 NA NA NA NA NA
IL13 IL.13 P35225 Interleukin-13 (IL-13) IL-13 5 131991955 131996802 ENSG00000169194 NA NA NA NA NA
IL15RA IL.15RA Q13261 Interleukin-15 receptor subunit alpha (IL-15RA) IL-15RA 10 5990855 6020150 ENSG00000134470 NA NA NA NA NA
IL17A IL.17A Q16552 Interleukin-17A (IL-17A) IL-17A 6 52051185 52055436 ENSG00000112115 NA NA NA NA NA
IL17C IL.17C Q9P0M4 Interleukin-17C (IL-17C) IL-17C 16 88704999 88706881 ENSG00000124391 NA NA NA NA NA
IL18 IL.18 Q14116 Interleukin-18 (IL-18) IL-18 11 112013974 112034840 ENSG00000150782 NA NA NA NA NA
IL18R1 IL.18R1 Q13478 Interleukin-18 receptor 1 (IL-18R1) IL-18R1 2 102927989 103015218 ENSG00000115604 NA NA NA NA NA
IL1A IL.1.alpha P01583 Interleukin-1 alpha (IL-1 alpha) IL-1 alpha 2 113531492 113542167 ENSG00000115008 NA NA NA NA NA
IL2 IL.2 P60568 Interleukin-2 (IL-2) IL-2 4 123372625 123377880 ENSG00000109471 NA NA NA NA NA
IL20 IL.20 Q9NYY1 Interleukin-20 (IL-20) IL-20 1 207038699 207042568 ENSG00000162891 NA NA NA NA NA
IL20RA IL.20RA Q9UHF4 Interleukin-20 receptor subunit alpha (IL-20RA) IL-20RA 6 137321108 137366298 ENSG00000016402 NA NA NA NA NA
IL22RA1 IL.22.RA1 Q8N6P7 Interleukin-22 receptor subunit alpha-1 (IL-22RA1) IL-22RA1 1 24446261 24469611 ENSG00000142677 NA NA NA NA NA
IL24 IL.24 Q13007 Interleukin-24 (IL-24) IL-24 1 207070788 207077484 ENSG00000162892 NA NA NA NA NA
IL2RB IL.2RB P14784 Interleukin-2 receptor subunit beta (IL-2RB) IL-2RB 22 37521878 37571094 ENSG00000100385 NA NA NA NA NA
IL33 IL.33 O95760 Interleukin-33 (IL-33) IL-33 9 6215805 6257983 ENSG00000137033 NA NA NA NA NA
IL4 IL.4 P05112 Interleukin-4 (IL-4) IL-4 5 132009678 132018368 ENSG00000113520 NA NA NA NA NA
IL5 IL.5 P05113 Interleukin-5 (IL-5) IL-5 5 131877136 131892530 ENSG00000113525 NA NA NA NA NA
IL6 IL.6 P05231 Interleukin-6 (IL-6) IL-6 7 22765503 22771621 ENSG00000136244 NA NA NA NA NA
IL7 IL.7 P13232 Interleukin-7 (IL-7) IL-7 8 79587978 79717758 ENSG00000104432 NA NA NA NA NA
IL8 IL.8 P10145 Interleukin-8 (IL-8) IL-8 4 74606223 74609433 ENSG00000169429 NA NA NA NA NA
KITLG SCF P21583 Stem cell factor (SCF) SCF 12 88886570 88974628 ENSG00000049130 NA NA NA NA NA
LIF LIF P15018 Leukemia inhibitory factor (LIF) LIF 22 30636436 30642840 ENSG00000128342 NA NA NA NA NA
LIFR LIF.R P42702 Leukemia inhibitory factor receptor (LIF-R) LIF-R 5 38475065 38608456 ENSG00000113594 NA NA NA NA NA
LTA TNFB P01374 TNF-beta (TNFB) TNFB 6 31539831 31542101 ENSG00000226979 NA NA NA NA NA
MMP1 MMP.1 P03956 Matrix metalloproteinase-1 (MMP-1) MMP-1 11 102660651 102668891 ENSG00000196611 NA NA NA NA NA
MMP10 MMP.10 P09238 Matrix metalloproteinase-10 (MMP-10) MMP-10 11 102641234 102651359 ENSG00000166670 NA NA NA NA NA
NGF Beta.NGF P01138 Beta-nerve growth factor (Beta-NGF) Beta-NGF 1 115828539 115880857 ENSG00000134259 NA NA NA NA NA
NRTN NRTN Q99748 Neurturin (NRTN) NRTN 19 5823813 5828335 ENSG00000171119 NA NA NA NA NA
NTF3 NT.3 P20783 Neurotrophin-3 (NT-3) NT-3 12 5541278 5630702 ENSG00000185652 NA NA NA NA NA
OSM OSM P13725 Oncostatin-M (OSM) OSM 22 30658818 30662829 ENSG00000099985 NA NA NA NA NA
PLAU uPA P00749 Urokinase-type plasminogen activator (uPA) uPA 10 75668935 75677255 ENSG00000122861 NA NA NA NA NA
S100A12 EN.RAGE P80511 Protein S100-A12 (EN-RAGE) EN-RAGE 1 153346184 153348125 ENSG00000163221 NA NA NA NA NA
SIRT2 SIRT2 Q8IXJ6 SIR2-like protein 2 (SIRT2) SIRT2 19 39369197 39390502 ENSG00000068903 NA NA NA NA NA
SLAMF1 SLAMF1 Q13291 Signaling lymphocytic activation molecule (SLAMF1) SLAMF1 1 160577890 160617085 ENSG00000117090 NA NA NA NA NA
STAMBP STAMPB O95630 STAM-binding protein (STAMPB) STAMPB 2 74056086 74100786 ENSG00000124356 NA NA NA NA NA
SULT1A1 ST1A1 P50225 Sulfotransferase 1A1 (ST1A1) ST1A1 16 28616903 28634946 ENSG00000196502 NA NA NA NA NA
TGFA TGF.alpha P01135 Transforming growth factor alpha (TGF-alpha) TGF-alpha 2 70674412 70781325 ENSG00000163235 NA NA NA NA NA
TGFB1 LAP.TGF.beta.1 P01137 Latency-associated peptide transforming growth factor beta 1 (LAP TGF-beta-1) LAP TGF-beta-1 19 41807492 41859816 ENSG00000105329 NA NA NA NA NA
TNF TNF P01375 Tumor necrosis factor (TNF) TNF 6 31543344 31546113 ENSG00000232810 NA NA NA NA NA
TNFRSF11B OPG O00300 Osteoprotegerin (OPG) OPG 8 119935796 119964439 ENSG00000164761 NA NA NA NA NA
TNFRSF9 TNFRSF9 Q07011 Tumor necrosis factor receptor superfamily member 9 (TNFRSF9) TNFRSF9 1 7979907 8000926 ENSG00000049249 NA NA NA NA NA
TNFSF10 TRAIL P50591 TNF-related apoptosis ligand (TRAIL) TRAIL 3 172223298 172241297 ENSG00000121858 NA NA NA NA NA
TNFSF11 TRANCE O14788 TNF-related activation cytokine (TRANCE) TRANCE 13 43136872 43182149 ENSG00000120659 NA NA NA NA NA
TNFSF12 TWEAK O43508 Tumor necrosis factor (Ligand) superfamily member 12 (TWEAK) TWEAK 17 7452208 7464925 ENSG00000239697 NA NA NA NA NA
TNFSF14 TNFSF14 O43557 Tumor necrosis factor ligand superfamily member 14 (TNFSF14) TNFSF14 19 6663148 6670599 ENSG00000125735 NA ENSG00000125735 19 6661253 6670588
TSLP TSLP Q969D9 Thymic stromal lymphopoietin (TSLP) TSLP 5 110405760 110413722 ENSG00000145777 NA NA NA NA NA
VEGFA VEGF.A P15692 Vascular endothelial growth factor A (VEGF_A) VEGF_A 6 43737921 43754224 ENSG00000112715 NA NA NA NA NA

followed by inclusion of Olink_qPCR for all 12 panels, Olink NGS, Caprion and SWATH-MS panels. SomaScanV4.1 is directly from SomaLogic.

2.2 Caprion

As has been the norm, no snapshot upon data release was provided which consequently requires substantial effort and the notable ones are highlighted here.

Table 2.2: Updated information on Caprion
Gene Gene.orig Protein Accession ensGenes chr start end
AMY1 AMY1A; AMY1B; AMY1C AMY1_HUMAN P04745 ENSG00000174876, ENSG00000187733, ENSG00000237763 1 103655760 103758726
C20orf27 C20orf27 CT027_HUMAN Q9GZN8 ENSG00000101220 20 3753508 3767781
C4B C4B; C4B_2 CO4B_HUMAN P0C0L5 ENSG00000224389, ENSG00000236625, ENSG00000228267, ENSG00000233312, ENSG00000228454 6 3262537 32035418
C7orf26 C7orf26 CG026_HUMAN Q96N11 ENSG00000146576 7 6590021 6608726
CD97 CD97 CD97_HUMAN P48960 ENSG00000123146 19 14380501 14408725
FAM49B FAM49B FA49B_HUMAN Q9NUQ9 ENSG00000153310 8 129839593 130017504
GBA GBA GLCM_HUMAN P04062 ENSG00000177628 1 155234452 155244699
HBA HBA1; HBA2 HBA_HUMAN P69905 ENSG00000188536, ENSG00000206172 16 172876 177522
HIST HIST1H4A; HIST1H4B; HIST1H4C; HIST1H4D; HIST1H4E; HIST1H4F; HIST1H4H; HIST1H4I; HIST1H4J; HIST1H4K; HIST1H4L; HIST2H4A; HIST2H4B; HIST4H4 H4_HUMAN P62805 ENSG00000277157, ENSG00000275126, ENSG00000274618, ENSG00000197061, ENSG00000158406, ENSG00000197238, ENSG00000276966, ENSG00000197837, ENSG00000276180, ENSG00000278705, ENSG00000273542, ENSG00000278637, ENSG00000270276, ENSG00000270882 6, 12, 1 14767999 149861159
SLC9A3R1 SLC9A3R1 NHRF1_HUMAN O14745 ENSG00000109062 17 74748628 74769353
WARS WARS SYWC_HUMAN P23381 ENSG00000140105 14 100333790 100376805
YARS YARS SYYC_HUMAN P54577 ENSG00000134684 1 32775237 32818031

which again is useful for extracting data from GTEx v8.

2.3 Overlap of proteins

It is of interest to compare some of these,

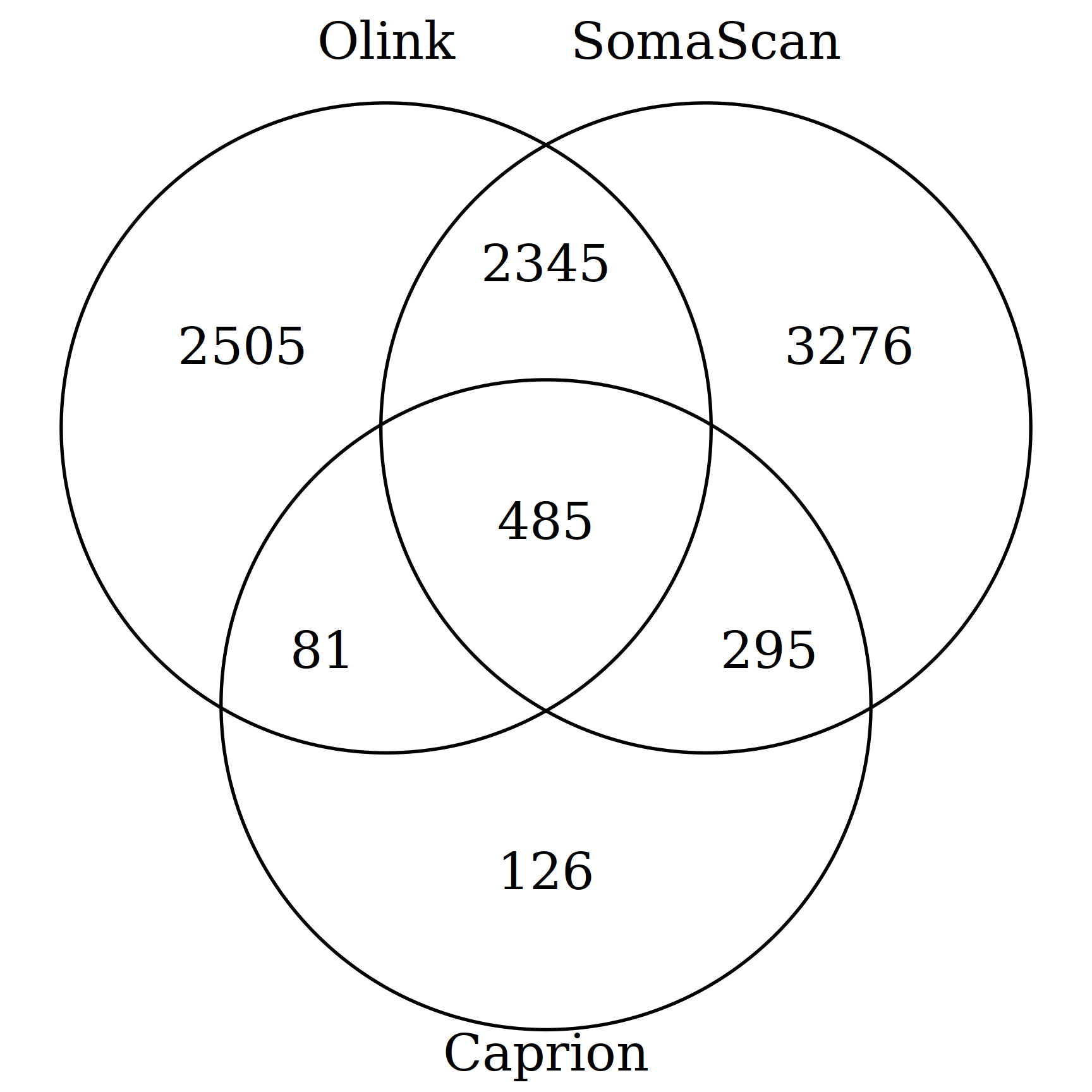

Overlap of Olink Explore HT, SomaScan V4.1 and Caprion

Figure 2.1: Overlap of Olink Explore HT, SomaScan V4.1 and Caprion

and the latest SomaScan 11K

Overlap of Olink Explore HT, SomaScan 11K and Caprion

Figure 2.2: Overlap of Olink Explore HT, SomaScan 11K and Caprion

3 Published data

This associates with the analysis of INTERVAL data as reported1, which includes the panel SomaScan160410, supplementary tables 4, 6, 18.

4 Reference data

Extractions biomaRt, hg19 and hg19Tables are based on ENSEMBL BioMart and UCSC.

5 Scripts

An analysis involving COVID-19 data is in Olink/ directory , while the scripts/ directory records data generation which potentially can be extended.

Specifically, pQTLdata.sh handles package under Cambridge Service for Data Driven Discovery (CSD3) system, and docs.sh operates with GitHub.

References

The EndNote/ directory includes references in1 and2 formatted in EndNote.

1.
Sun, B. B. et al. Genomic atlas of the human plasma proteome. Nature 558, 73–79 (2018).
2.
Suhre, K., McCarthy, M. I. & Schwenk, J. M. Genetics meets proteomics: Perspectives for large population-based studies. Nat Rev Genet (2020) doi:10.1038/s41576-020-0268-2.
